LS2500CFA2H/L Commercial Quick Freezer is designed for the display and refrigeration of demanding environments. Features intelligent controls, LED lighting, and a white cabinet.
Similar to the external unit of an air conditioner, designed to be installed outdoors to keep indoor space completely quiet.
Virtually zero noise inside the room. Placement is flexible as there is no need to worry about indoor heat dissipation.
Outdoor setup provides optimal cooling conditions for the condenser, resulting in significantly stronger refrigeration.

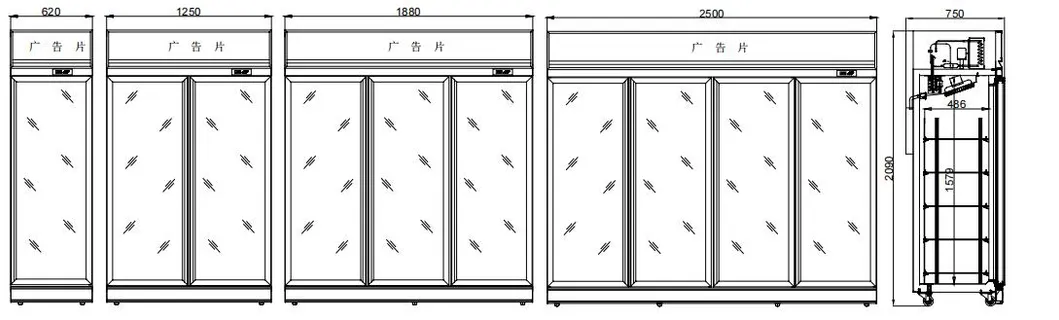

| Product name | Model | Dimension (W X D X H mm) | Volume (L) | Power (W) | Temperature ( ºC ) | Defrost way |
|---|---|---|---|---|---|---|
| Top-mounted Single-door Refrigerated Display Cabinet | LS620CFA2H/L | 620*735*2090 | 480 L | 300 W | 0ºC ~ 8ºC | Off-cycle defrost |
| Top-mounted Double-door Refrigerated Display Cabinet | LS1250CFA2H/L | 1250*735*2090 | 1050L | 480 W | 0ºC ~ 8ºC | Off-cycle defrost |
| Top-mounted Three-door Refrigerated Display Cabinet | LS1880CFA2H/L | 1880*735*2090 | 1600 L | 1080 W | 0ºC ~ 8ºC | Off-cycle defrost |

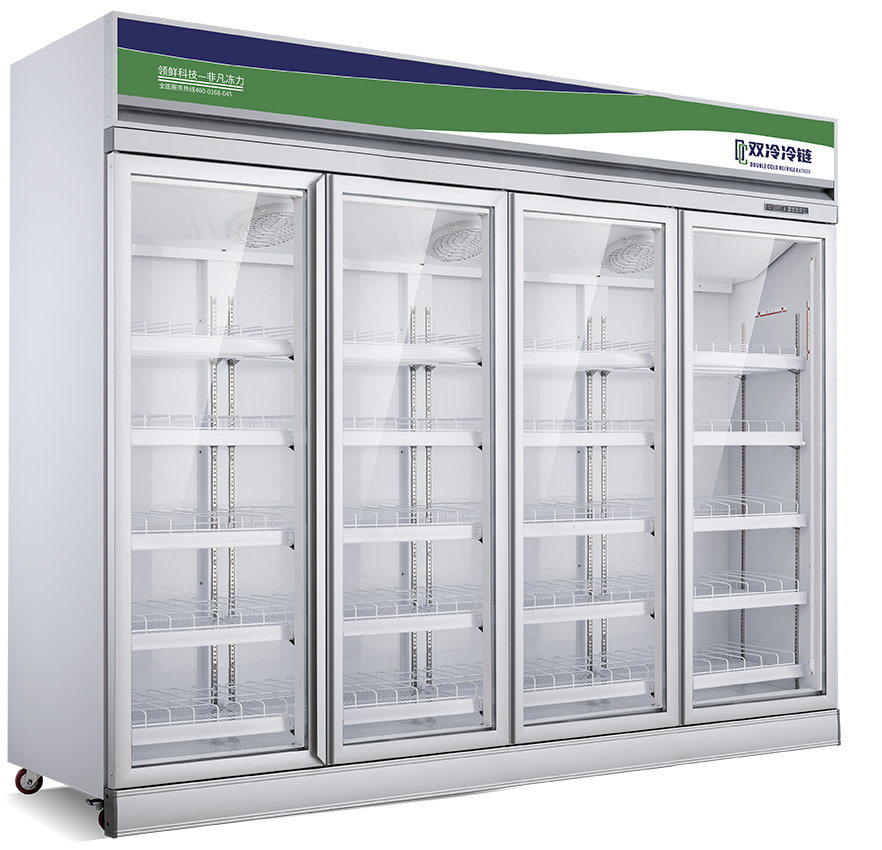

| Top-mounted Four-door Refrigerated Display Cabinet | LS2500CFA2H/L | 2500*735*2090 | 2200 L | 1240 W | 0ºC ~ 8ºC | Off-cycle defrost |
| Model | LS620CFA2H/L | LS1250CFA2H/L | LS1880CFA2H/L | LS2500CFA2H/L |
| Capacity | 480 L | 1050 L | 1600 L | 2200 L |
| Dimension(W*D*H)mm | 620*735*2090 | 1250*735*2090 | 1880*735*2090 | 2500*735*2090 |
| Packing | Splint foot + foam body + paper corner + corner guard | |||
| Color | White or Black | |||
| Number Of Doors | 1 | 2 | 3 | 4 |
| Voltage/frequency | 220-240V/50Hz | |||
| Temperature range | 0ºC ~ 8ºC | |||
| Out/Inner Material | Black wrinkled printed steel, inside cabinet Mirror Finished Iron/Stainless steel | |||

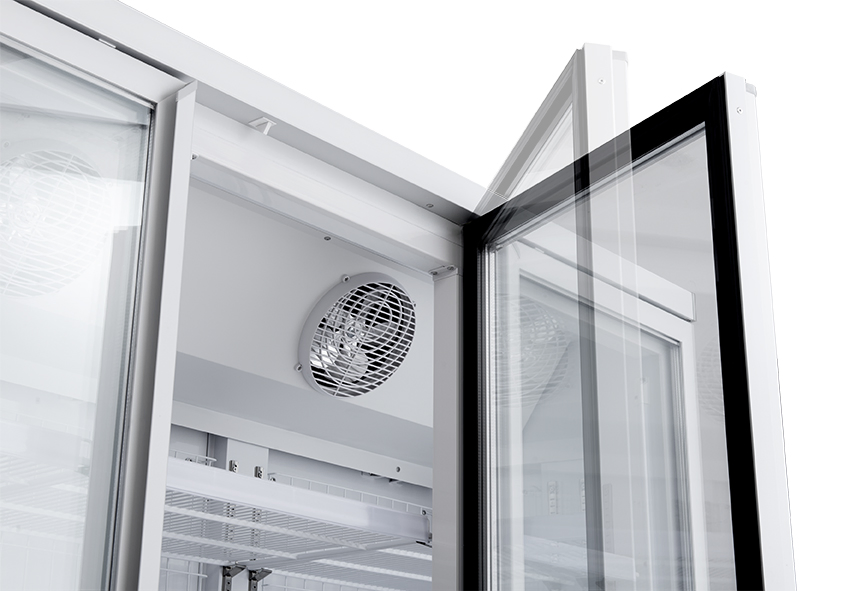

| Cooling type | Fan cooling | |||
The LS2500CFA2H/L commercial freezer maintains a single-temperature range of 0ºC to 8ºC. This temperature range is monitored and managed via an integrated smart thermostat to ensure persistent cooling.
The split unit functions similarly to an external air conditioning unit, meaning the compressor and condenser parts are installed outdoors. This design ensures virtually zero operating noise inside your showroom or store, while eliminating indoor heat dissipation issues.

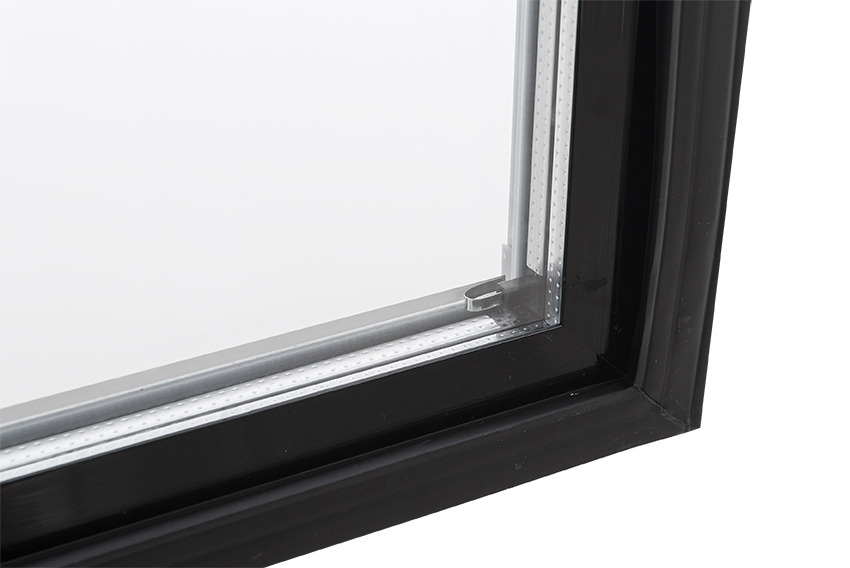

No. The double hollow three-layer glass door body is designed to prevent mist. For frozen styles, an optional electric heating defogging feature is available to effectively remove condensation, keeping the glass dry and clear.
The unit is equipped with an imported R290 compressor. The R290 refrigerant is highly efficient, environmentally friendly, and offers fast cooling performance while maintaining quiet operation.

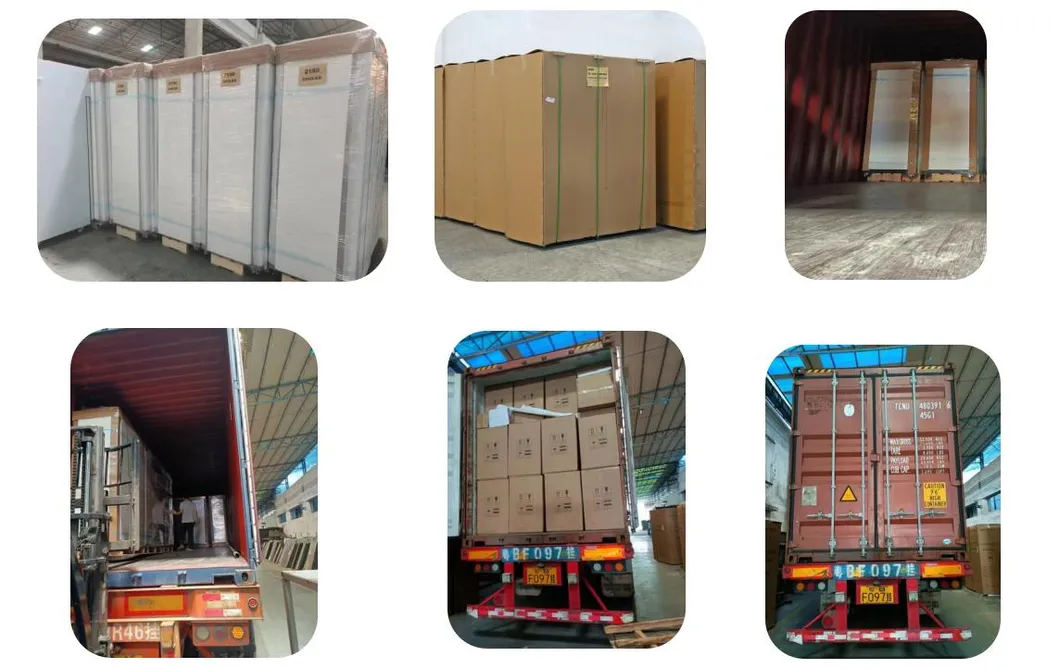

To guarantee safe transport, the display cabinet is shipped using a robust packaging system comprising a splint foot, foam body, protective paper corners, and corner guards to mitigate transport vibration and impact.
