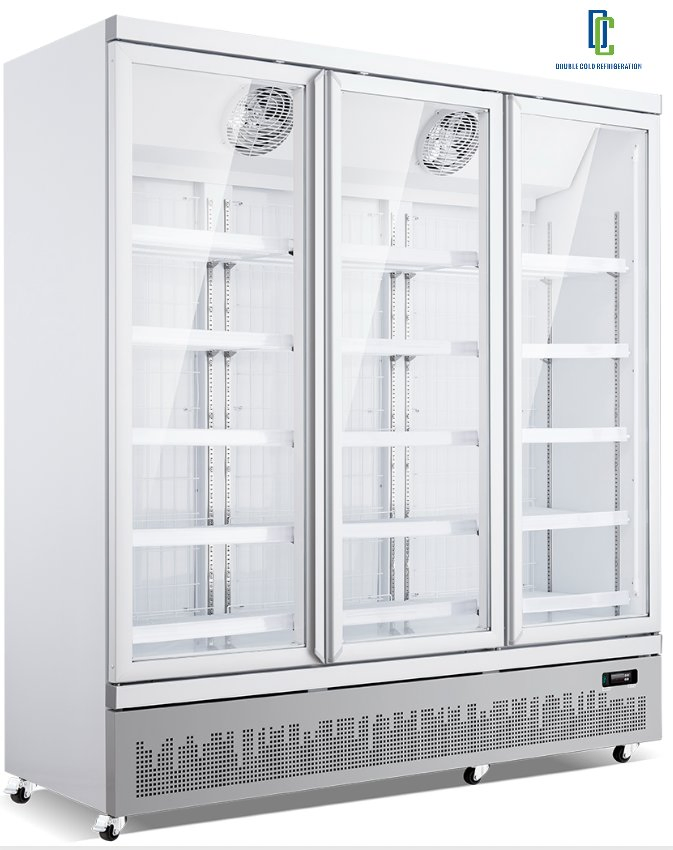

Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)

Still deciding? Get samples of $ !
Request Sample

Product Description

  • Overview
  • Product Description
  • Product Parameters
  • Packaging & Shipping
  • After Sales Service
  • Company Profile
  • Our Advantages
  • Certifications

Overview

Basic Info.
Model NO. LX1880CFA2H/L
Capacity 1600 L
Door Number 3 Doors
Type Air Cooling
Door Type Sliding Door
Power Source Electricity
Temperature Control Smart Thermostat
Temperature Type Single-temperature
Defrost Type Frost-Free
Function Cold Storage & Freezing
Certification ISO, EMC, ETL
Transport Package Splint Foot + Foam Body + Paper Corner + Corner Gu
Specification 1880X705X2050 (mm)
Origin Made in China
HS Code 8418500000
Production Capacity 50000PCS/Year

Product Description

LX1880CFA2H/L Commercial Quick Freezer Designed for the Display and Refrigeration of the environment Demanding scene, Intelligent Controls, LED Lighting and White Cabinet.
  • The split unit is similar to the external unit of air conditioner and needs to be installed outdoors
  • There is basically no noise in the room
  • There is no need to consider heat dissipation, and the box is placed at will
  • The outdoor is more suitable for the refrigeration conditions of the condenser, making the refrigeration stronger
Performance
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)

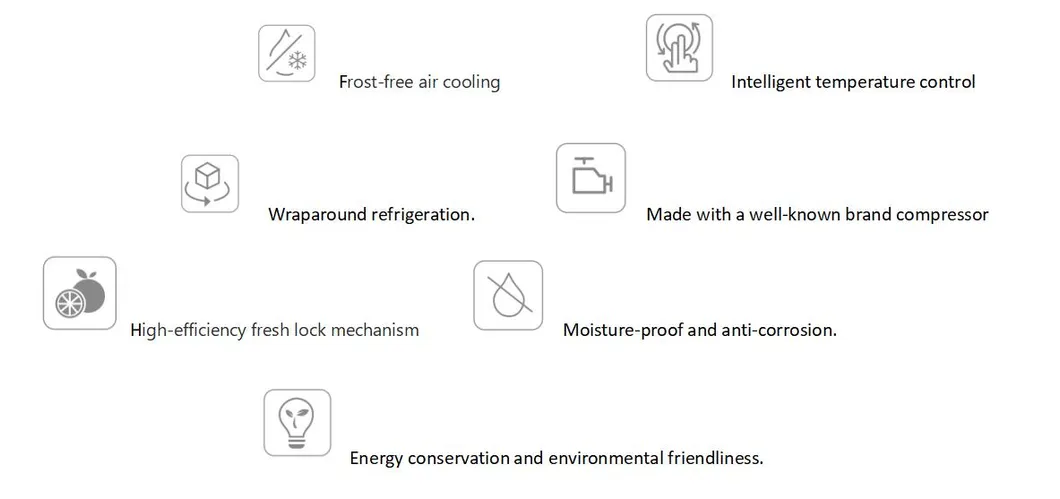

Key Features
  • Use the imported R290 compressor with a large cooling capacity that is fast, efficient, and quiet.
  • The hot gasification frost is removed from the inside out, with bottom heating in addition to water, ensuring that the frost is cleaned thoroughly.

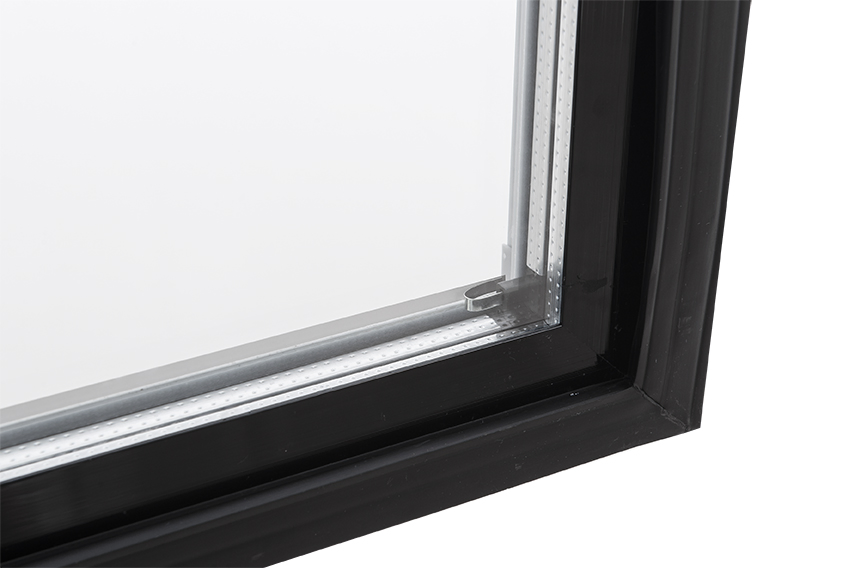

  • The double hollow three-layer glass door body can be installed with an electric heating defogging door, which effectively removes the glass condensation mist, keeping the glass dry and clear (in the frozen style).

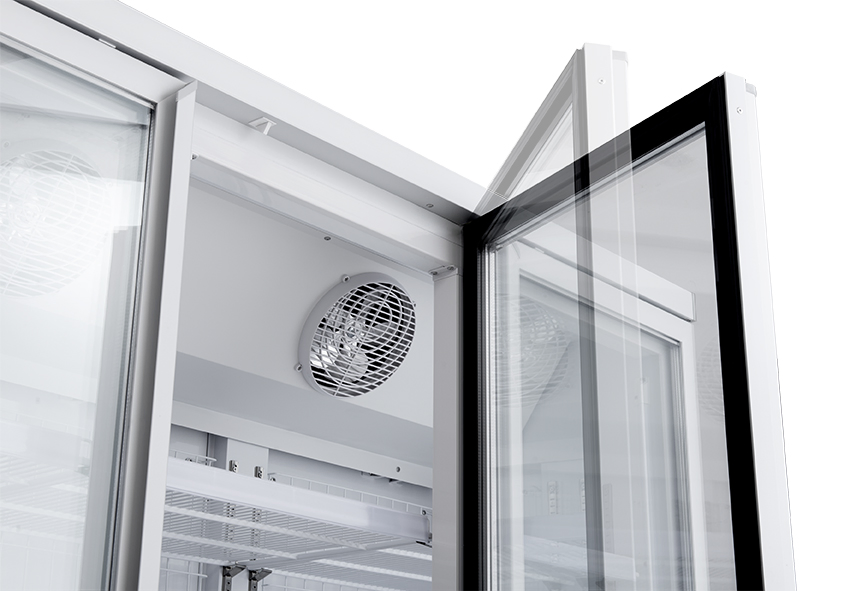

  • The bridge design is effective in completely isolating the cold air, and the evaporator fan switch and the door are stopped effectively to prevent the loss of cold energy.
  • The cyclopentane microcellular foaming technology provides good thermal insulation performance, energy savings, and environmental protection.
  • The back plastic protection network design, combined with smooth air ducts, ensures that the cabinet temperature is more uniform.

Product Parameters

Specification
Bottom-Mounted Three-Door Refrigerated Display Cabinet (Model: LX1880CFA2H/L)

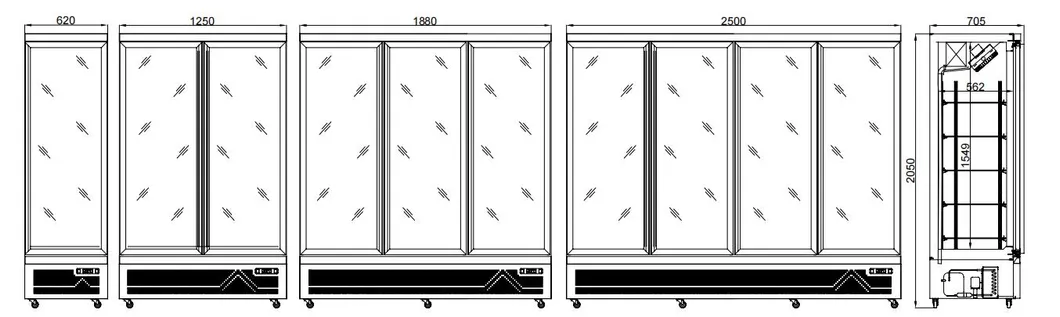

Product name Model Dimension (W X D X H mm) Volume (L) Power (W) Temperature ( ºC ) Defrost way
Bottom-Mounted Single-door Refrigerated Display Cabinet LX620CFA2H/L 620*705*2050 480 L 300 W 0ºC ~ 8ºC Off-cycle defrost
Bottom-Mounted Double-door Refrigerated Display Cabinet LX1250CFA2H/L 1250*705*2050 1050 L 480 W 0ºC ~ 8ºC Off-cycle defrost
Bottom-Mounted Three-door Refrigerated Display Cabinet LX1880CFA2H/L 1880*705*2050 1600 L 1080 W 0ºC ~ 8ºC Off-cycle defrost
Bottom-Mounted Four-door Refrigerated Display Cabinet LX2500CFA2H/L 2500*705*2050 2200 L 1240 W 0ºC ~ 8ºC Off-cycle defrost
Technical Details
Model LX620CFA2H/L LX1250CFA2H/L LX1880CFA2H/L LX2500CFA2H/L
Capacity 480 L 1050 L 1600 L 2200 L
Dimension(W*D*H)mm 620*705*2050 1250*705*2050 1880*705*2050 2500*705*2050
Packing Splint foot + foam body + paper corner + corner guard Splint foot + foam body + paper corner + corner guard Splint foot + foam body + paper corner + corner guard Splint foot + foam body + paper corner + corner guard
Color White or Black White or Black White or Black White or Black
Number Of Doors 1 2 3 4
Voltage/frequency 220-240V/50Hz
Temperature range 0ºC ~ 8ºC
Out/Inner Material black wrinkled printed steel, inside cabinet Mirror Finished Iron/Stainless steel
Cooling type Fan cooling

Packaging & Shipping

After Sales Service

After Sales Service Details

Company Profile

Company Overview Image

Our Advantages

Key Advantages Diagram

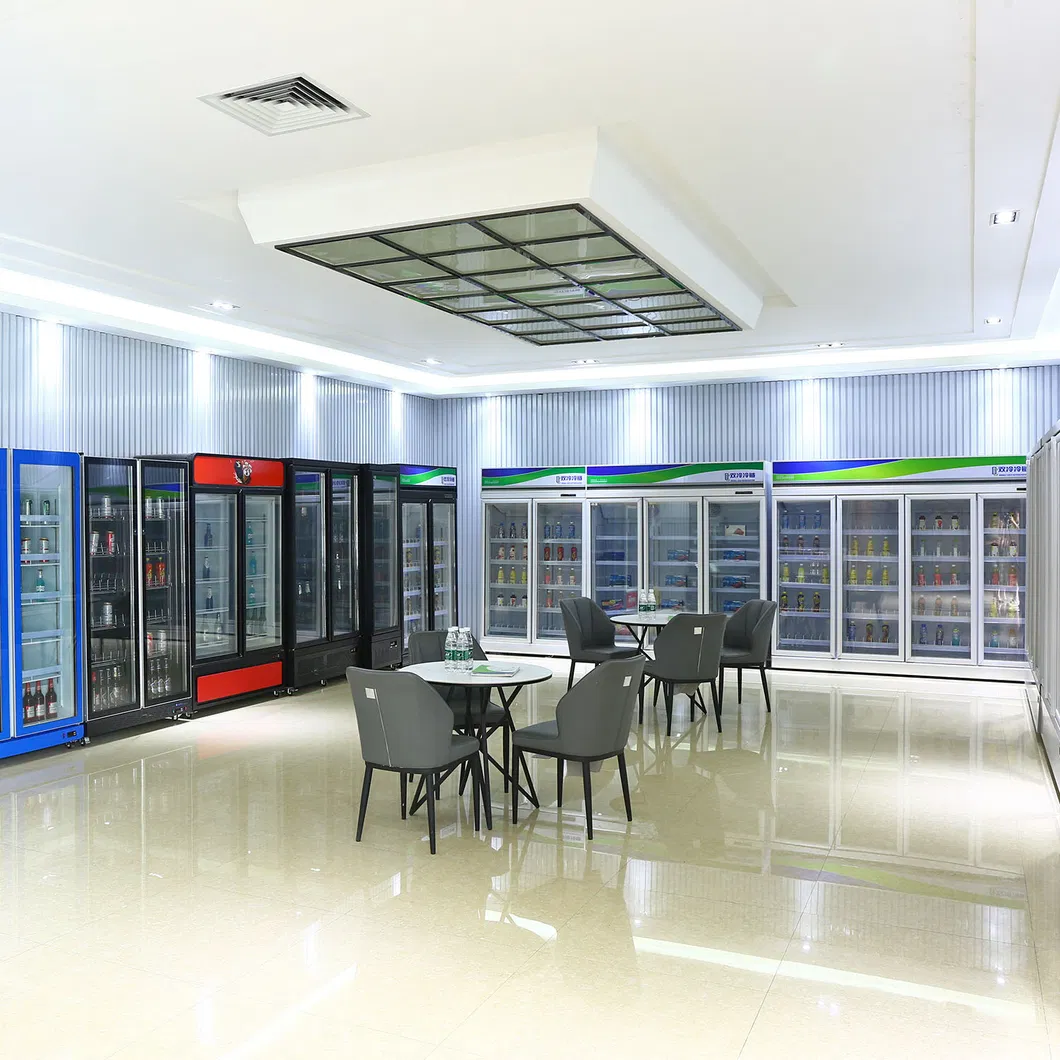

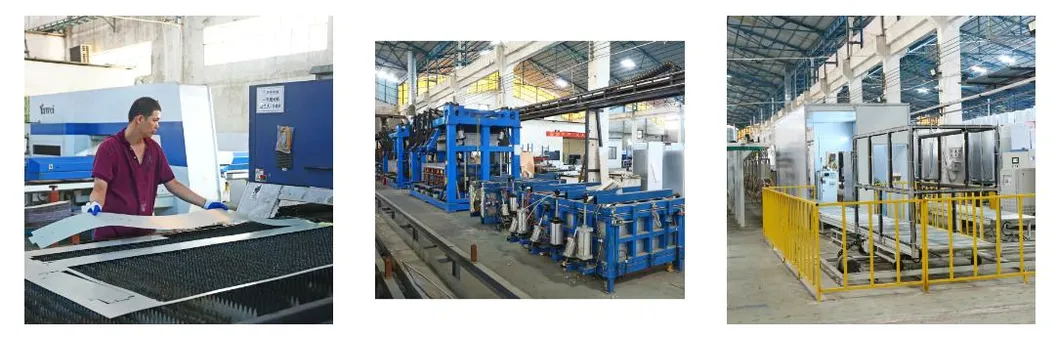

Showroom & Workshop

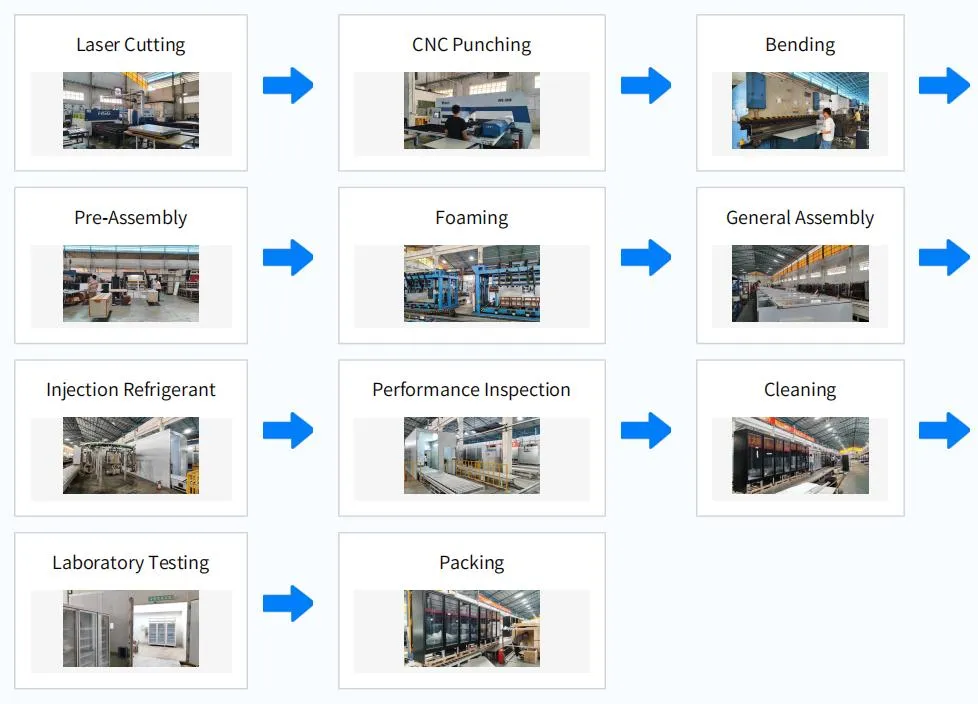

Production Process
Detailed Production Process Diagram

Certifications

Product Certifications

Frequently Asked Questions

What compressor is used in these refrigerated display cabinets?
The cabinets are equipped with imported R290 compressors, which deliver large cooling capacity that is quiet, fast, and highly efficient.
What are the benefits of a split unit installation for the quick freezer?
A split unit places the condenser outdoors, resulting in virtually no indoor noise. It also removes the need for indoor heat dissipation, allowing flexible box placement and providing stronger outdoor cooling performance.
How does the cabinet prevent condensation on the glass doors?
The double hollow three-layer glass door body can be outfitted with an electric heating defogging feature, which actively removes condensation mist, keeping the glass dry and clear for display.
What is the temperature range of the display cabinets?
These display cabinets are designed to operate within a single-temperature range of 0ºC to 8ºC, controlled via a smart thermostat.
What certification standards do these refrigeration cabinets meet?
All models are compliant with international standards and hold certifications including ISO, EMC, and ETL.
What thermal insulation technology is used in construction?
The display cabinets use cyclopentane microcellular foaming technology, providing excellent thermal insulation performance, environmental protection, and energy savings.
